Description

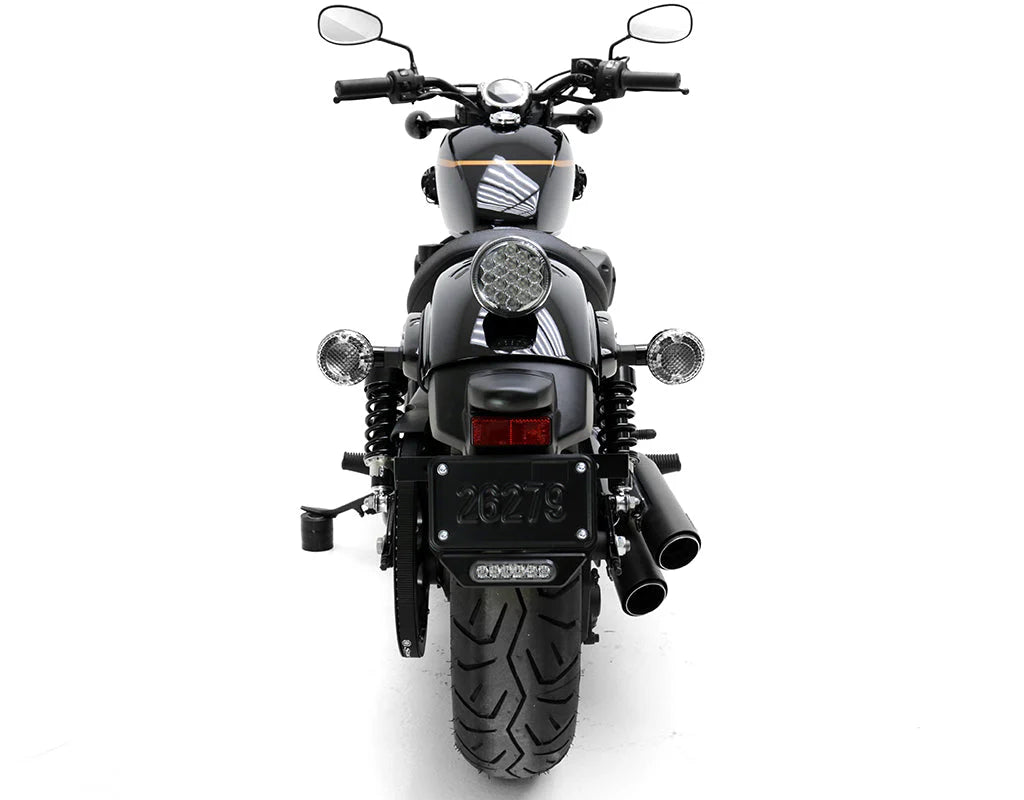

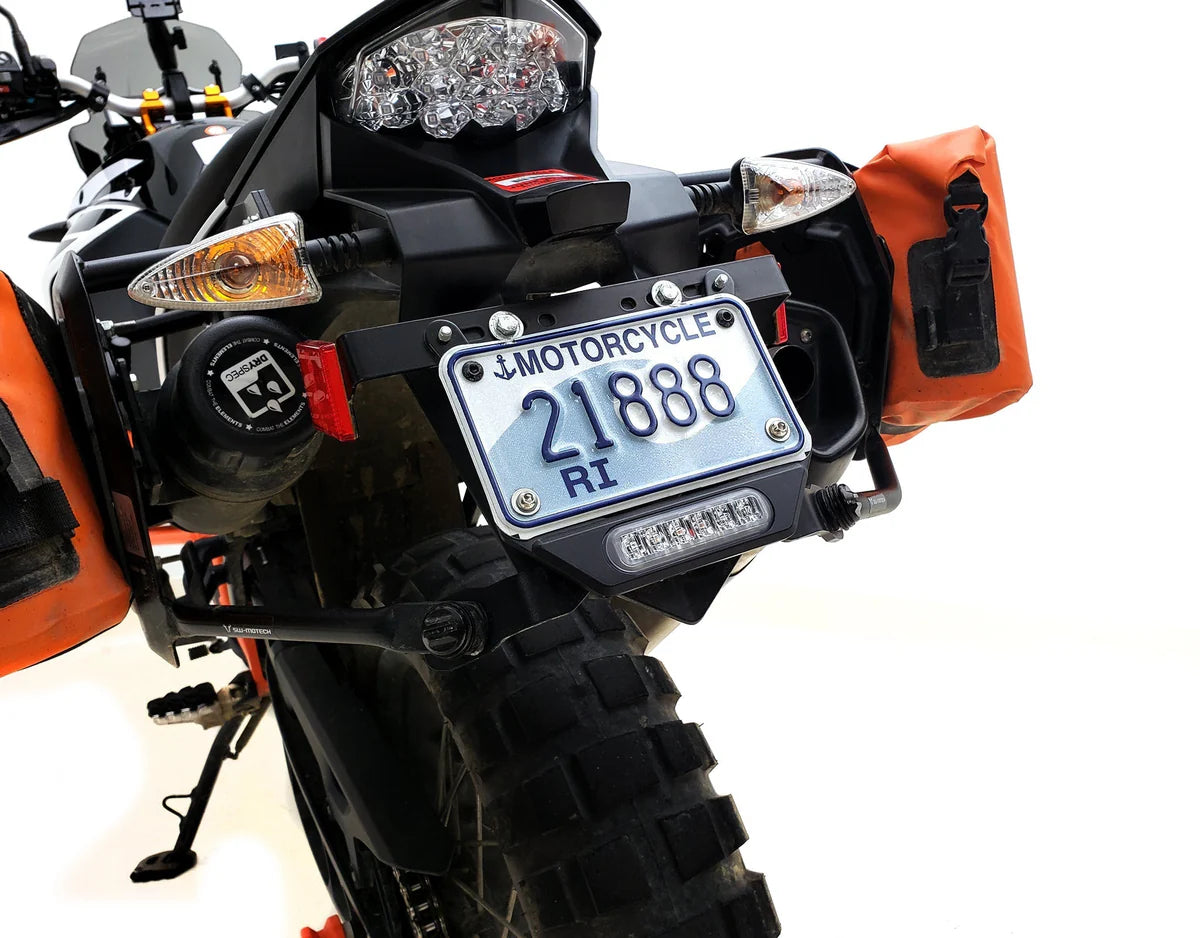

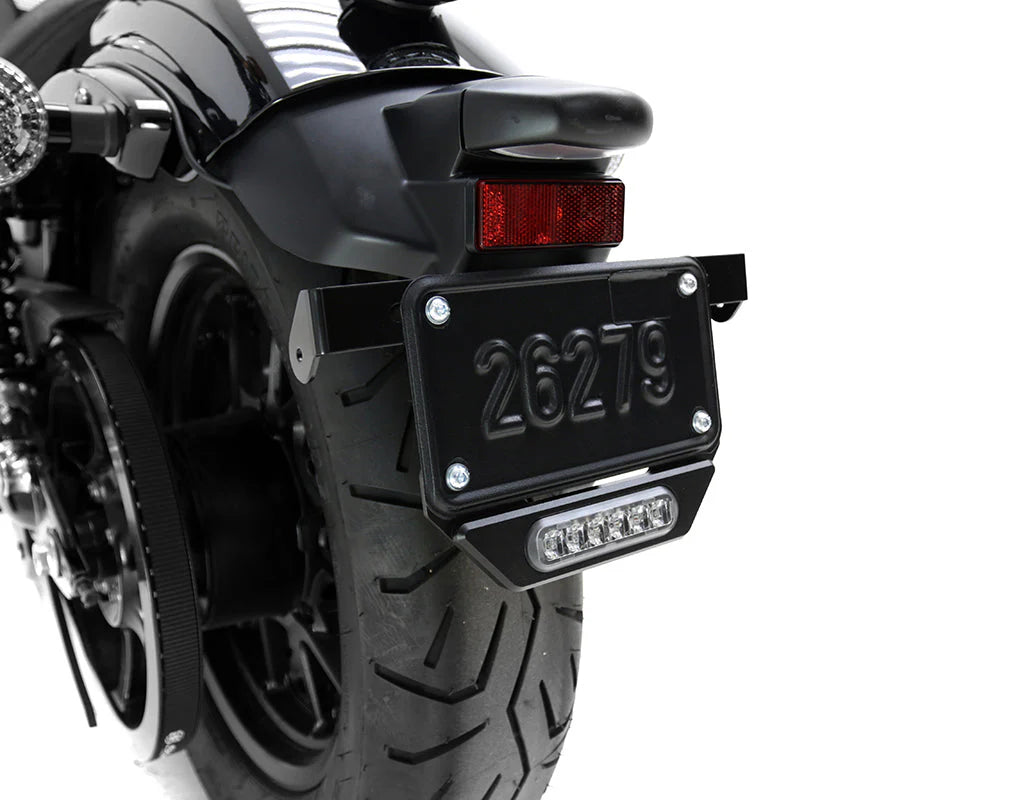

This Auxiliary LED Brake Light Kit was designed to mount a single B6 Pod above or below your license plate, re-using the existing plate mounting points.

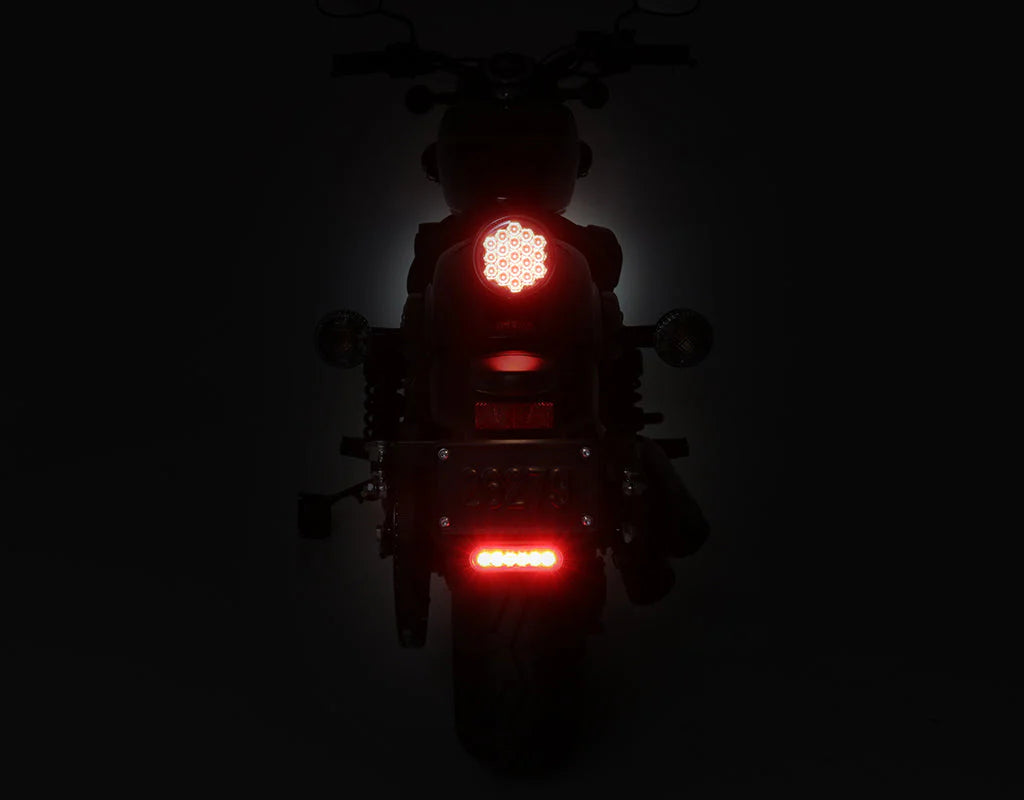

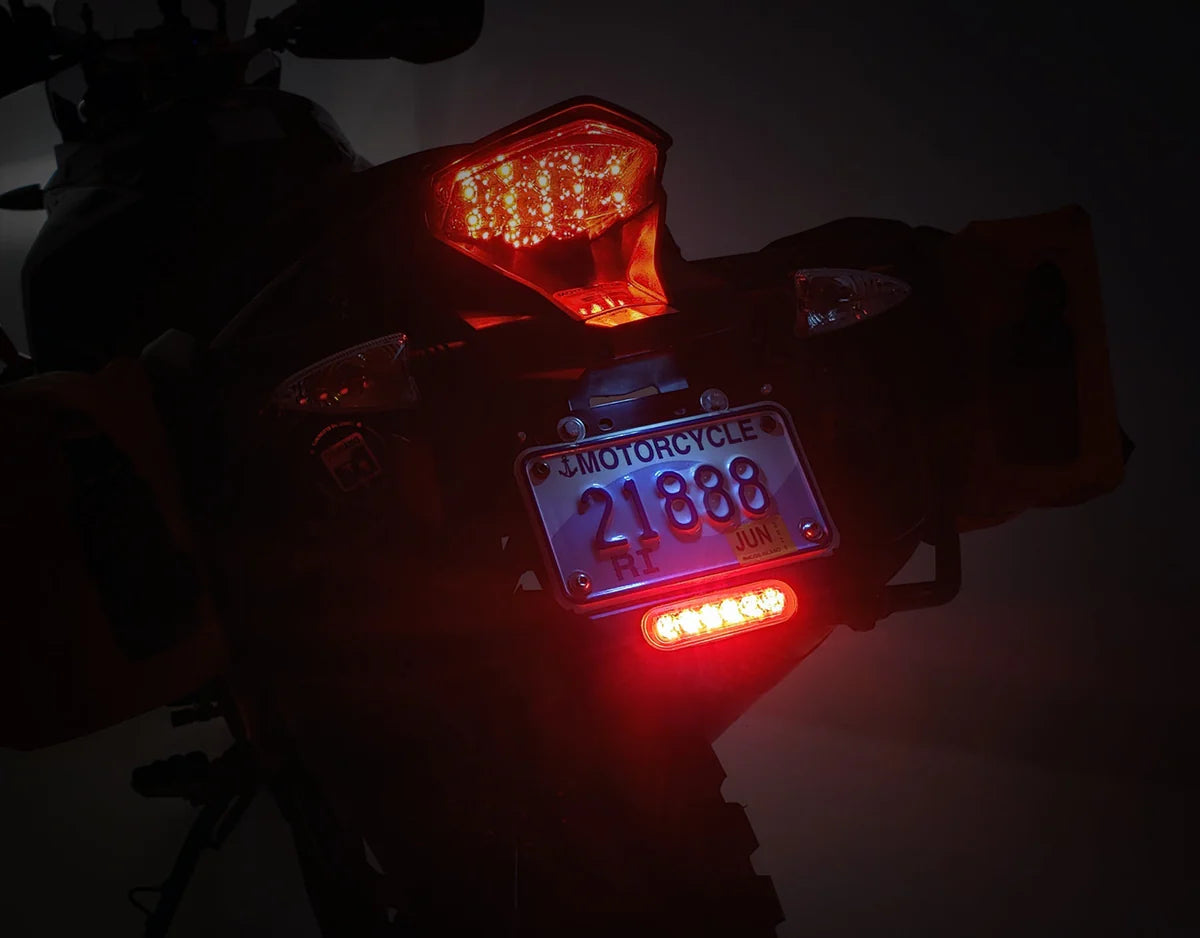

Purpose built to create the most amount of light from the smallest, most low-profile, housing possible, the B6 is unbelievably bright but will practically disappear once installed on your plate. Complete with a waterproof micro connector and included posi-taps, the B6 will plug-n-play directly to the DENALI CANsmart controller or connect into any vehicle brake light circuit.
The B6 is the optimum auxiliary brake light to add to the CANsmart™ Controller. Connecting to the CANsmart™ enables programmable flash pattern brake light and deceleration activated auto brake light functionality making the B6 the brightest and most feature-rich auxiliary brake light on the market.
Features

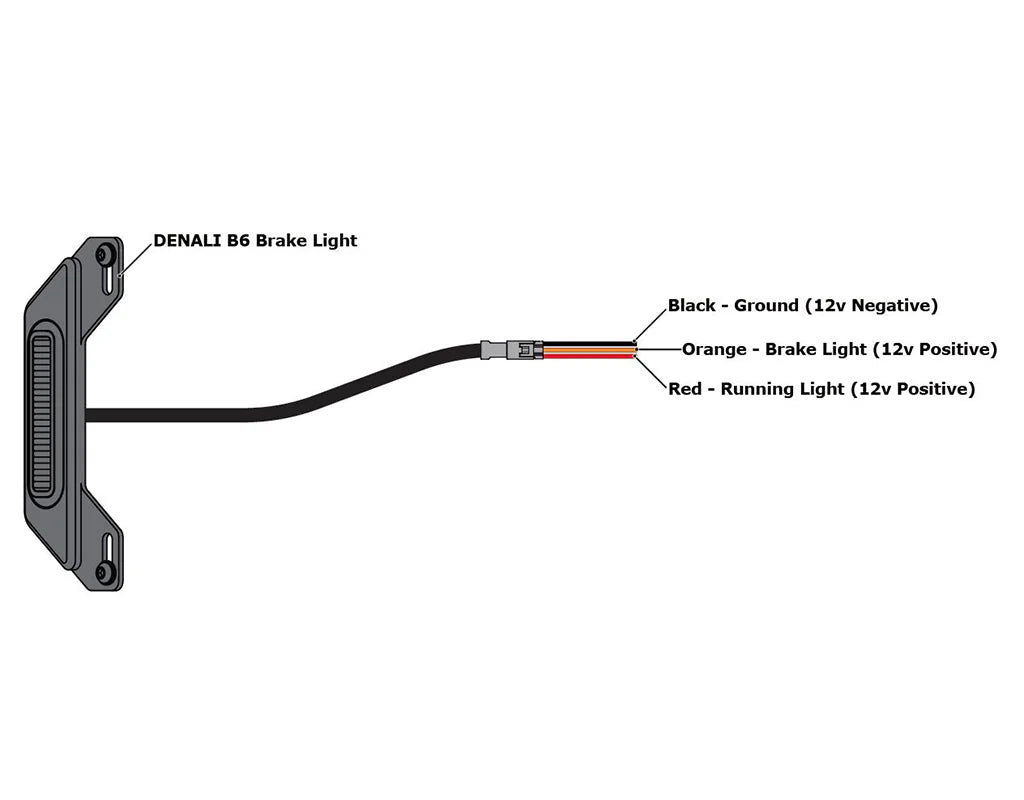

Dual Circuit: Running and brake
180 degree viewing angle
Six high power LEDs
Low 6 watt power consumption
Low profile design
Easy to connect to vehicle brake circuit
Specs
Power Draw: 0.5 Amp
Voltage: 12V DC

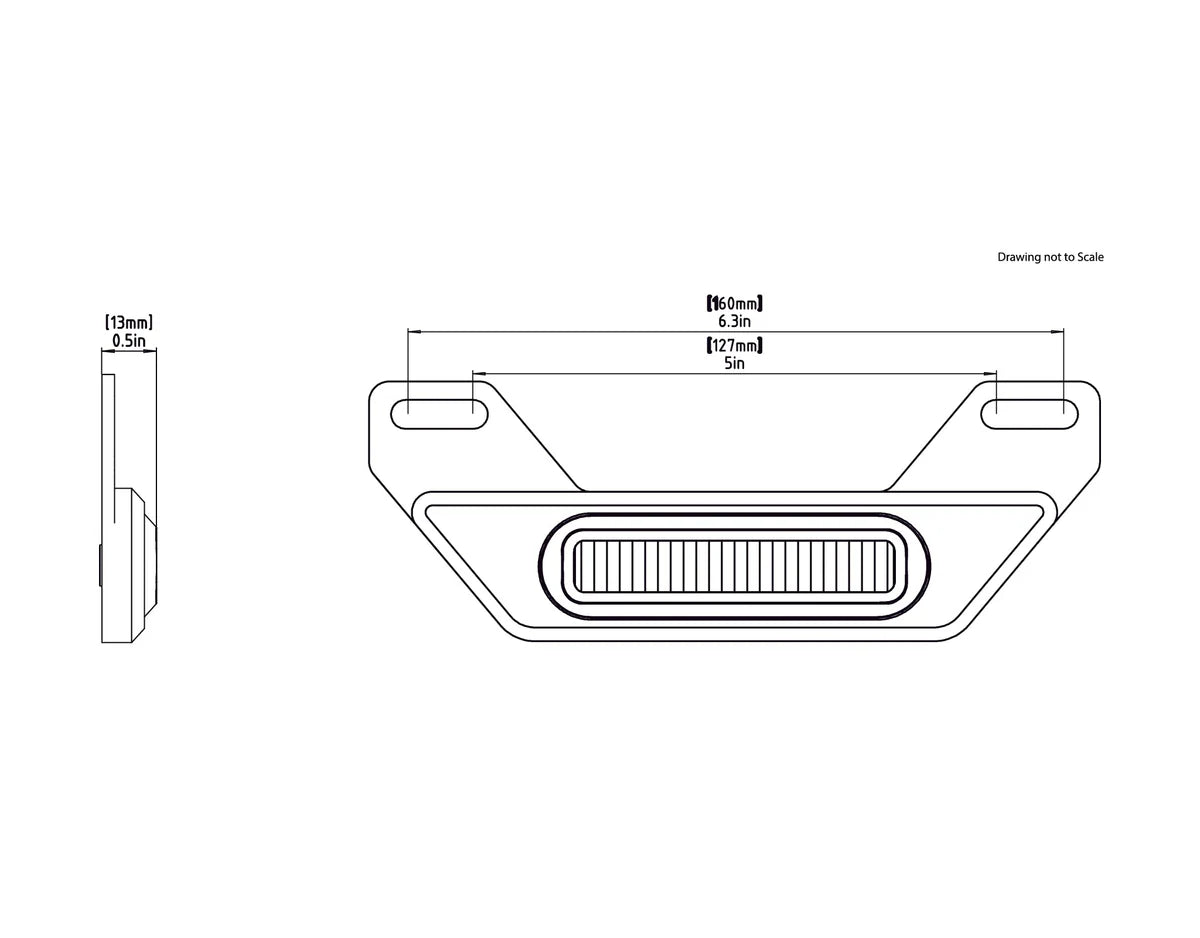

Size: 4.4" x 1.1" x 0.42"
Raw Lumens: 870
IP67 Waterproof
Additional Features with DENALI CANsmart™ Controller
Programmable deceleration activated brake light
Programmable flash pattern brake light
Plug & play waterproof connection to CANsmart™ Controller
What's In The Box?

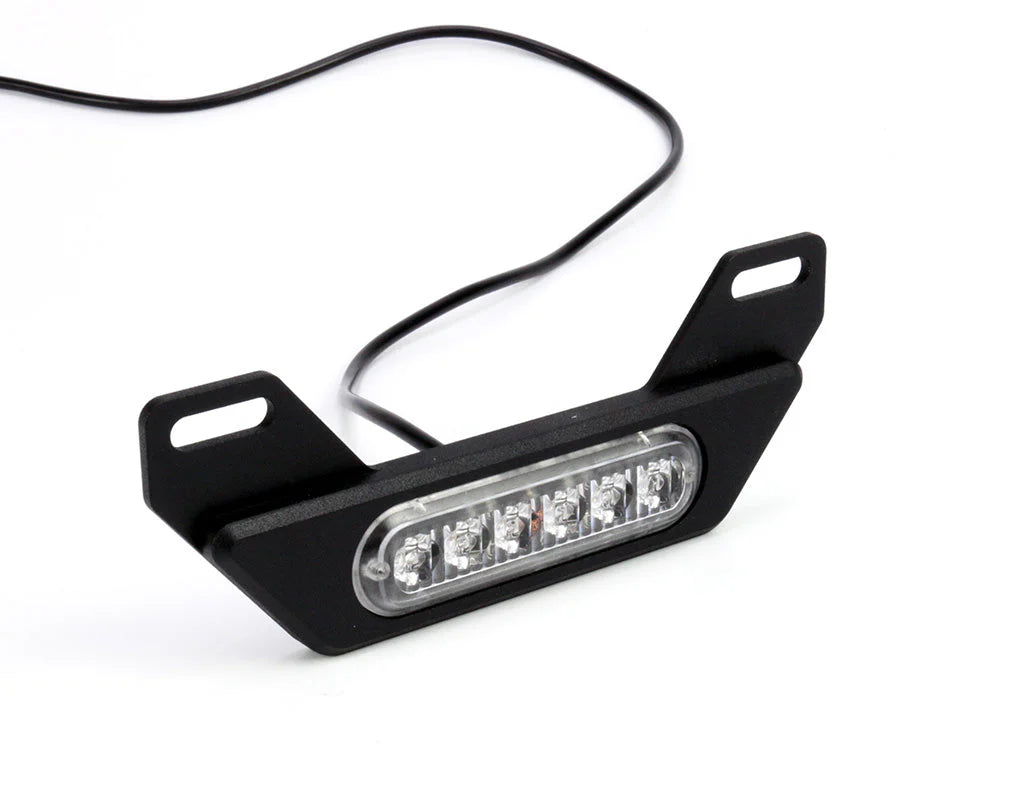

(x1) DENALI B6 Auxiliary Brake Light
(x2) M6 Mounting Hardware
(x1) Wiring Pigtail
(x3) Posi-Taps
Instruction Manual Download
