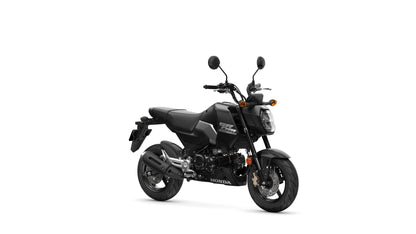

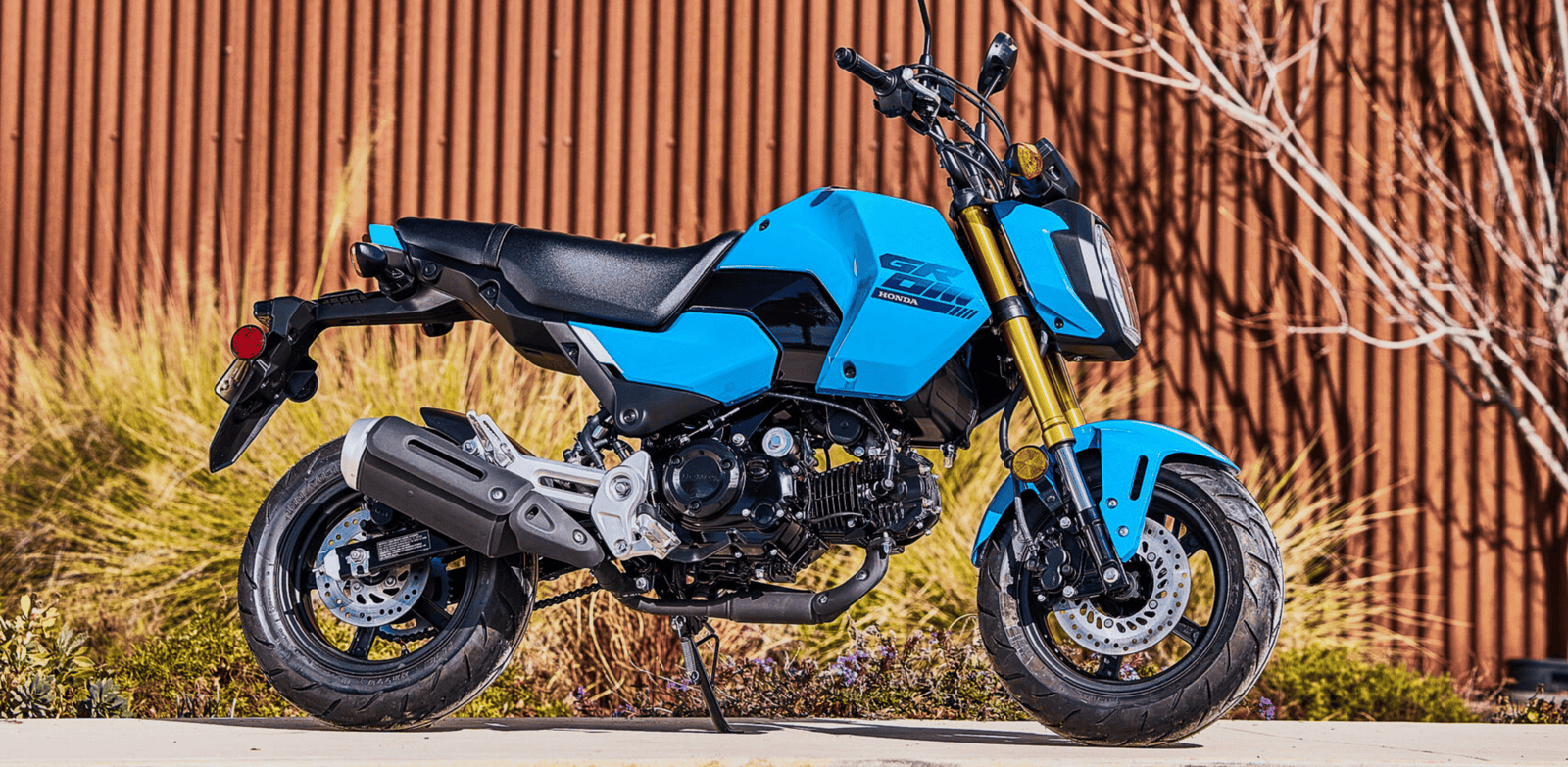

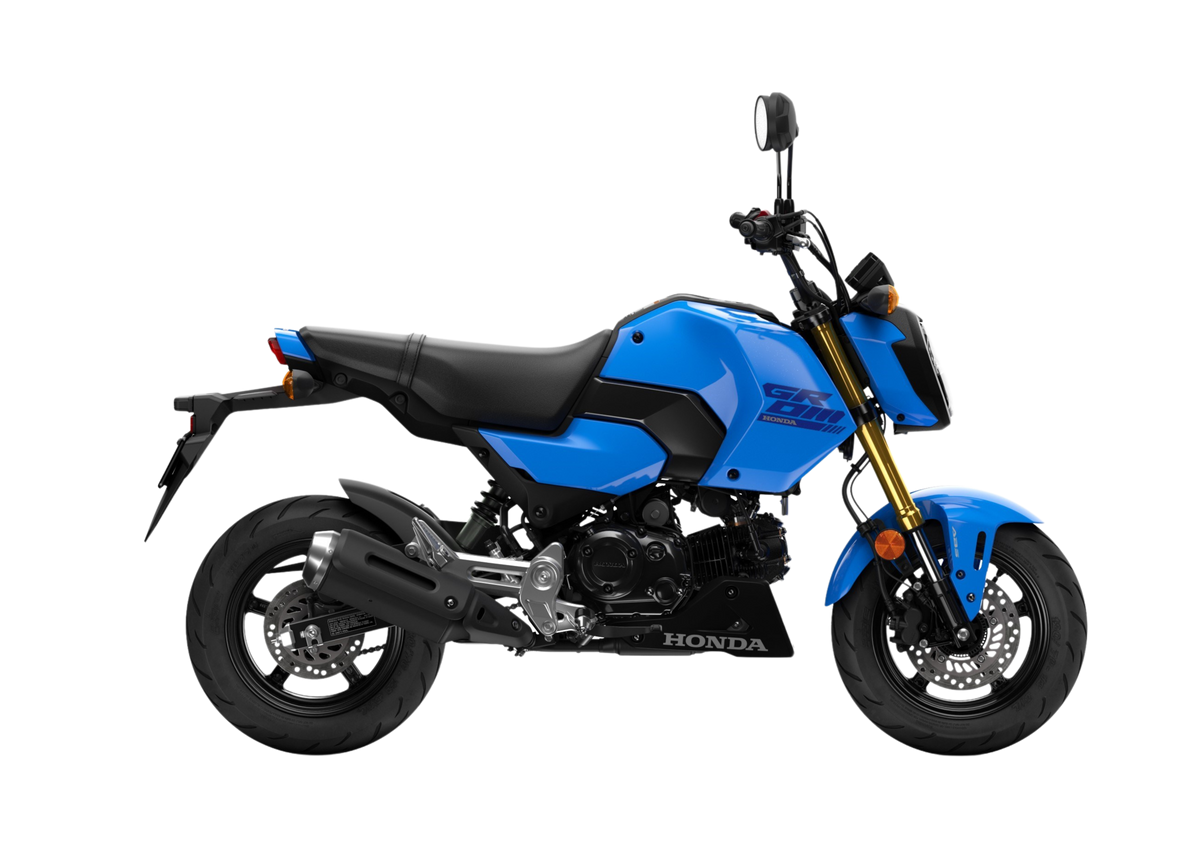

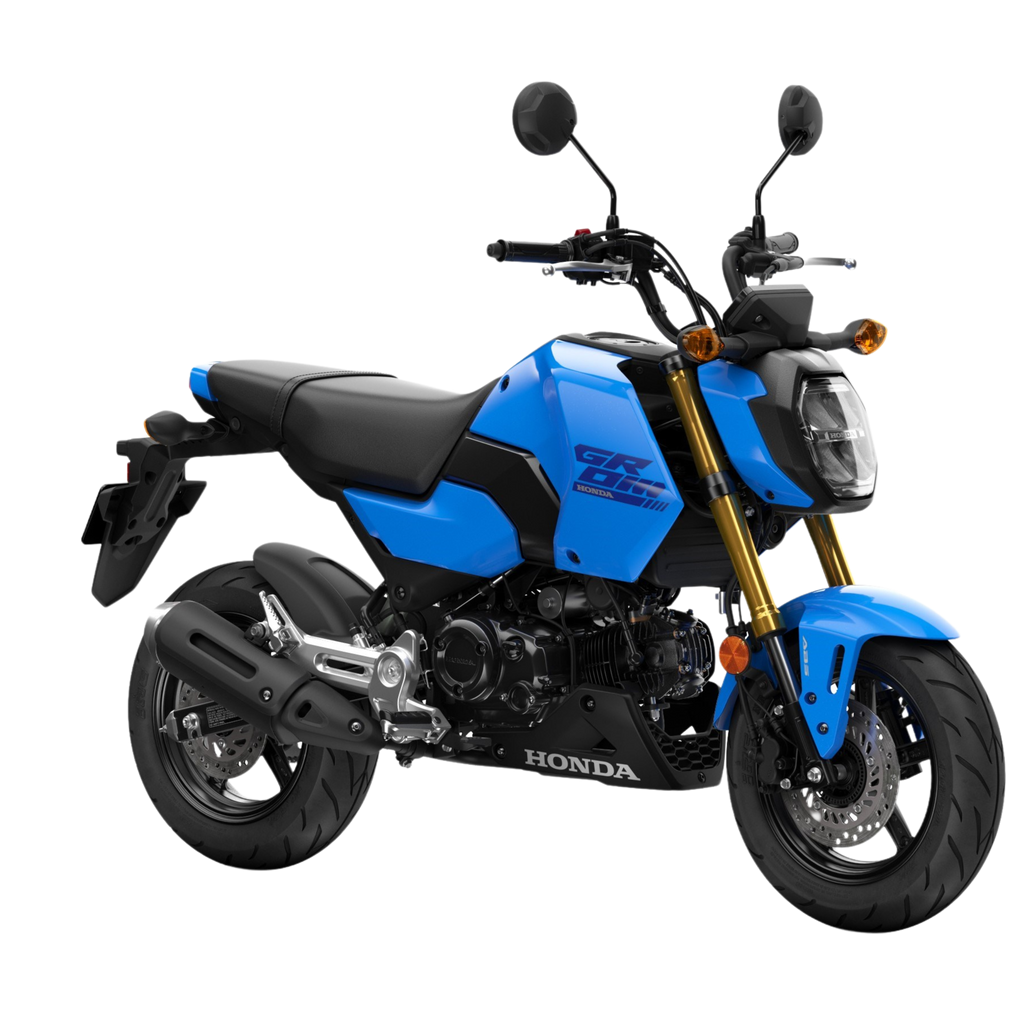

2025 HONDA MSX125 GROM AVAILABLE AT AMI
Looking for a New Honda for 2025?
Why not give us a call to arrange a deal either straight or trade your current bike.

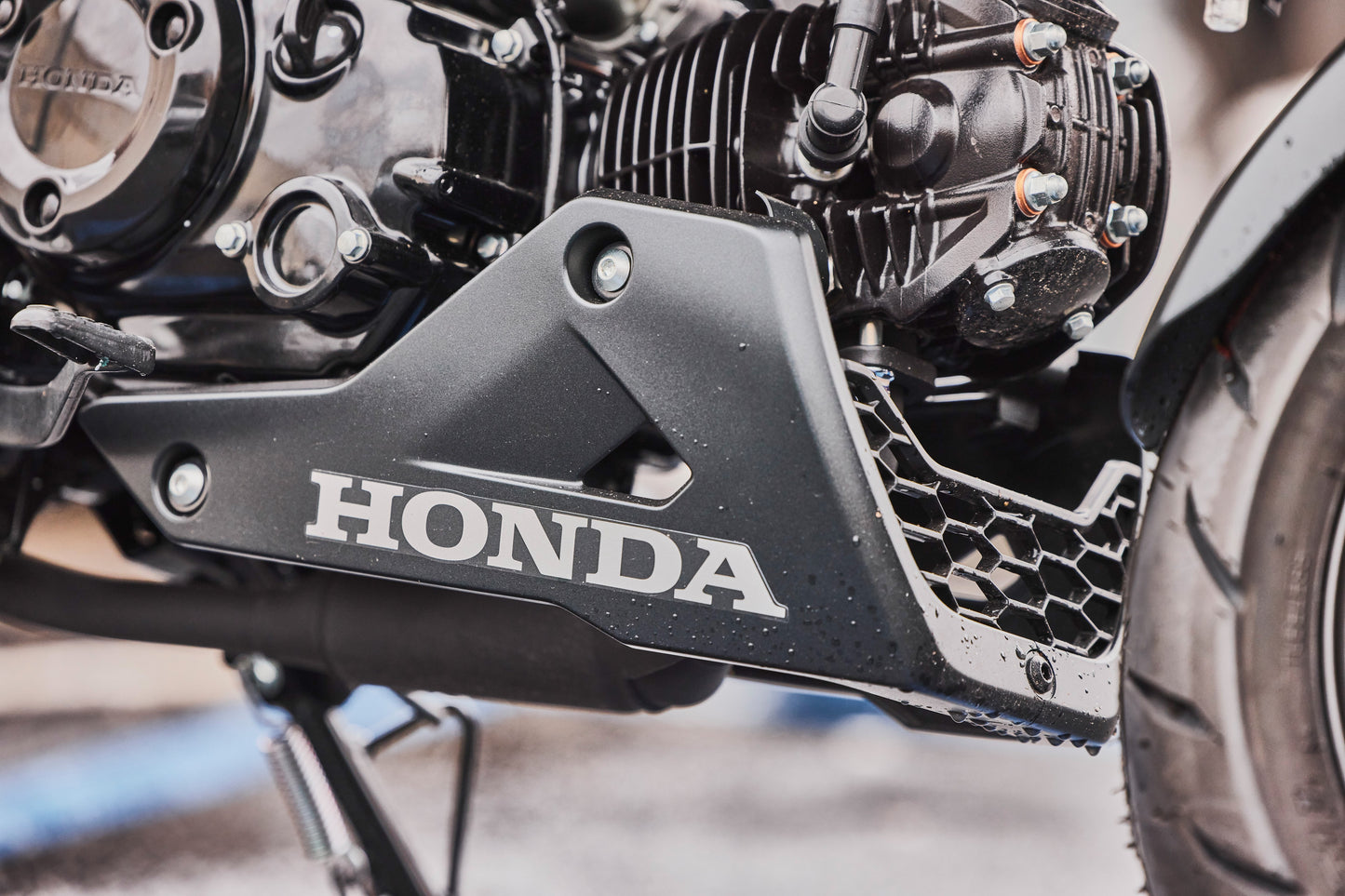

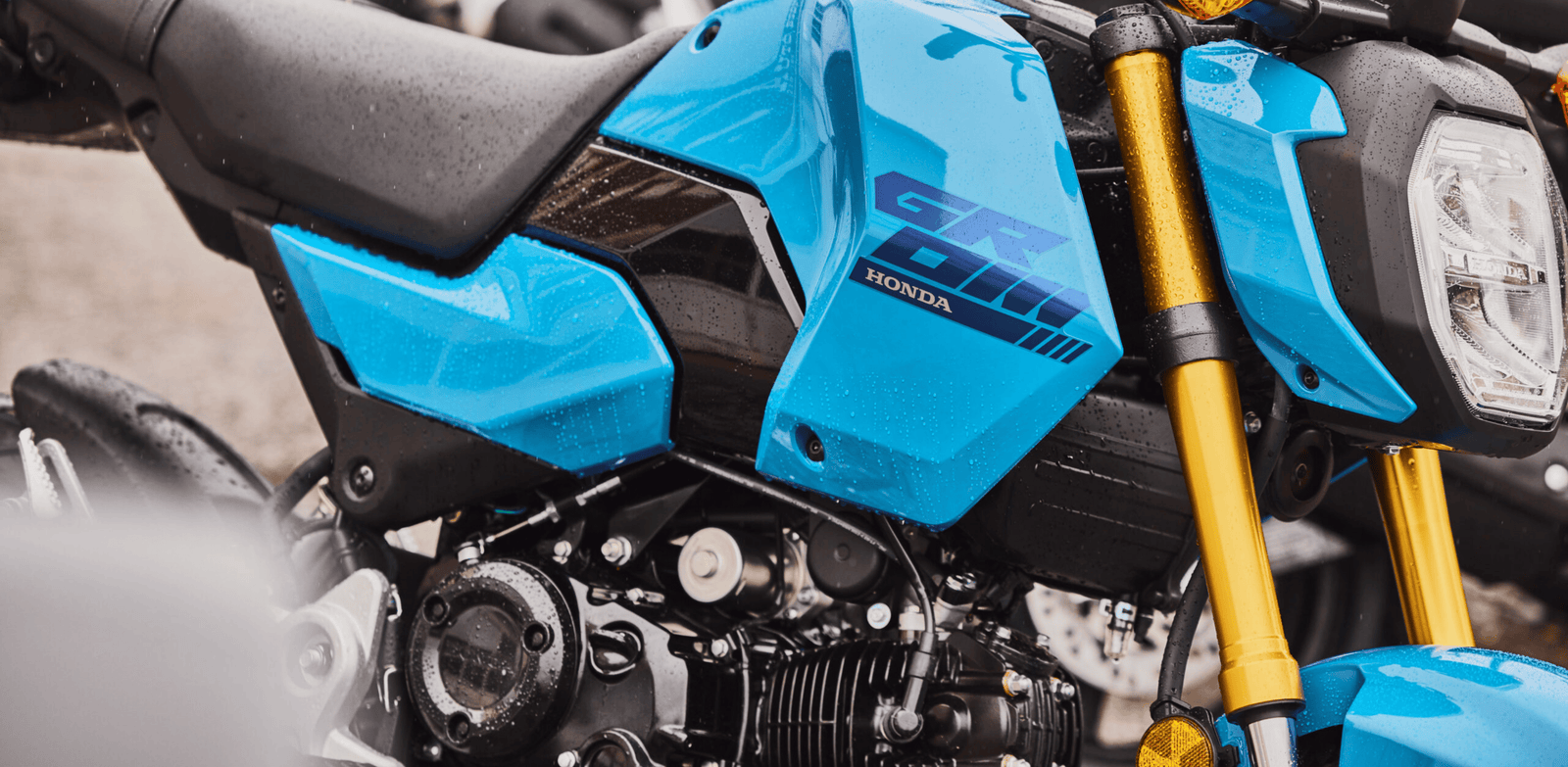

The Grom’s 125cc, SOHC 2-valve air-cooled engine maintains usable, real-world performance and drives through a 5-speed gearbox for more relaxed long-range riding. The tried and tested chassis continues to employ 31mm USD forks and 12-inch wheels to offer small-bike dimensions with big-bike suspension control and handling qualities. IMU-controlled disc braking provides an extra layer of riding confidence.
Engine
Engine Air-cooled, 2-valve, single cylinder
Displacement 124cc
Bore x Stroke 50.0mm x 63.1mm
Max. Power Output 7.3kW @ 7,250 rpm
Max. Torque 10.8Nm @ 6,000rpm
Compression Ratio 10.0:1
Oil Capacity 1.1 L
Starter Electric
Fuel System PGM-FI electronic fuel injection
Transmission 5-speed
Clutch Type Wet multiplate
Final Drive Chain
Dimensions and Weight
Length x Width x Height 1,760mm x 720mm x 1,015mm
Wheelbase 1,200mm
Caster Angle 25°
Trail 81mm
Seat Height 761mm
Ground Clearance 180mm
Fuel Capacity 6 litres
Weight 103 kg (Kerb Weight)
Turning Radius 1.9 metres
Chassis
Frame Steel mono-backbone frame
Front Suspension USD Front Forks, 31mm
Rear Suspension Mono shock, steel square pipe swingarm
Front Brake Single 220mm disc with hydraulic dual-piston brake caliper
Rear Brake Single 190mm disc with hydraulic single-piston brake caliper
Front Tire 120/70-12
Rear Tire 130/70-12
Rim Type 5 Spoke Aluminium Cast
Rim Size Front MT 2.5 -12
Rim Size Rear MT 2.5 -12

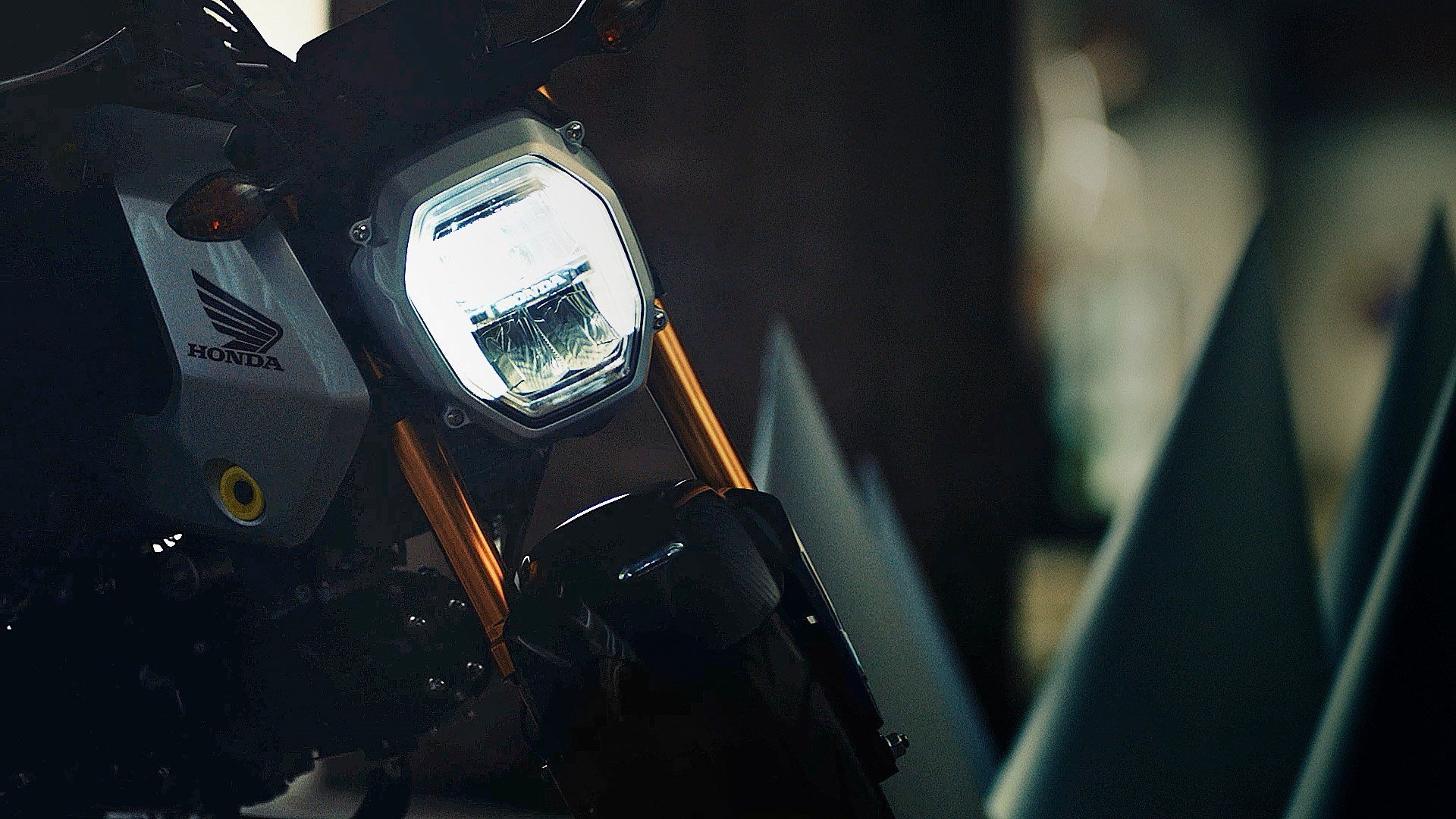

Headlight LED
Taillight LED

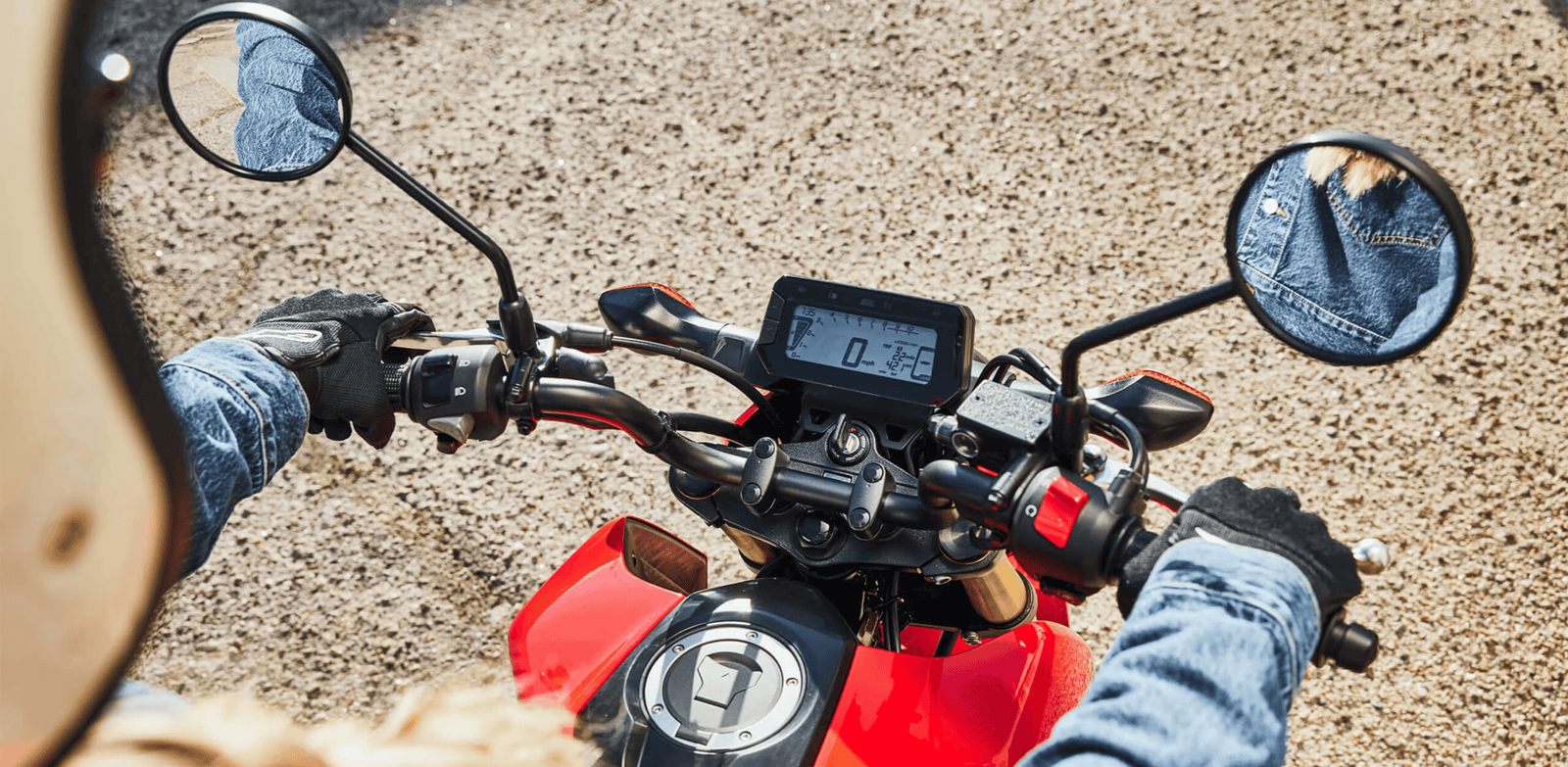

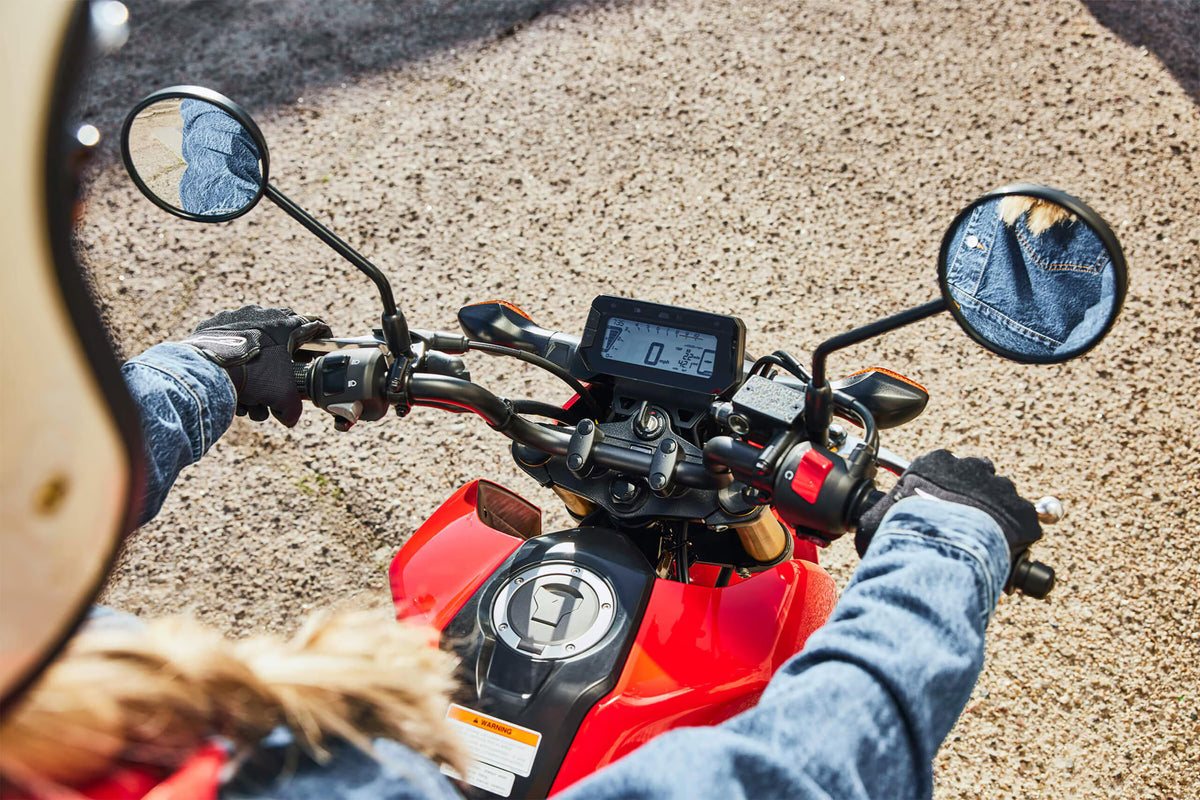

Instruments LCD digital dash with speedometer, twin trip meters, fuel gauge and clock.
